API Keys

Purpose

Use API Keys to create and manage credentials for external programmatic access to the public API (reports, drilldown analytics, and read-only machine config).

Steps (create a key)

  1. Open Settings > API Keys.
  2. Select Create (top-right).
  3. Enter a name for the key.
  4. Choose the permissions this key should have (one or more of: reports, drilldown analytics, read-only machine config).
  5. Optionally set an expiration date. Leave it empty for a key that never expires.
  6. Select Save.
  7. Copy the displayed key immediately — it is shown only once and cannot be retrieved again later.

Steps (edit a key)

  1. Open Settings > API Keys.
  2. Select Edit on an active key.
  3. Change the name, permissions, and/or expiration date.
  4. Select Save Changes.

Editing does not reveal or change the secret value

Editing a key updates its name, permissions, and expiration only. The key's secret value itself cannot be viewed again or changed — revoke and create a new key instead if the secret may have been exposed.

Steps (revoke or delete a key)

  1. Open Settings > API Keys.
  2. On the key, select Revoke to disable it immediately (kept in the revoked list for reference), or Delete to remove it entirely.

What users see

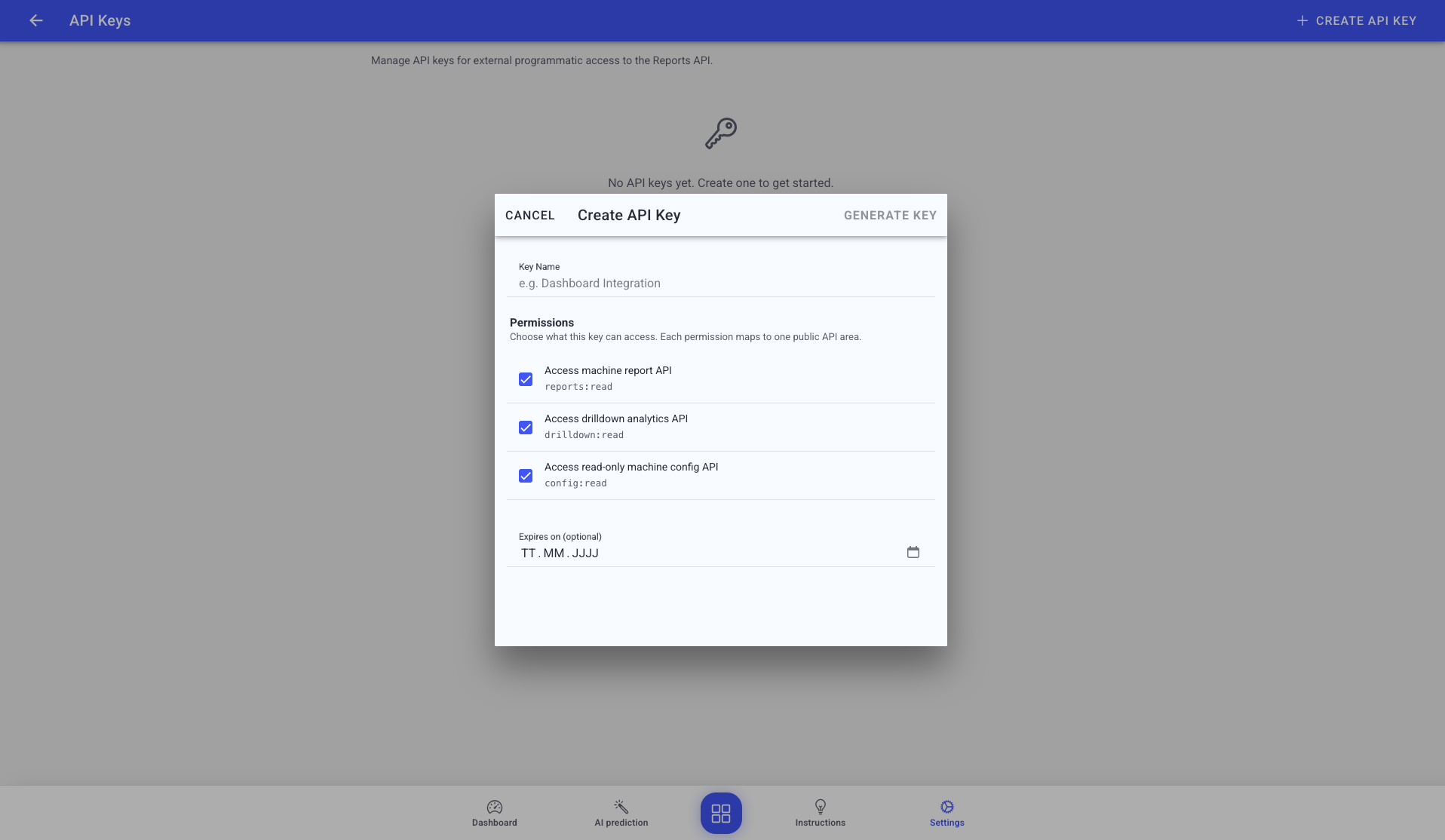

The Create / Edit dialog has a name field, a checkbox per permission (machine report, drilldown analytics, read-only machine config), and an optional expiry date:

Create API Key dialog with name field, three permission checkboxes, and optional expiry date

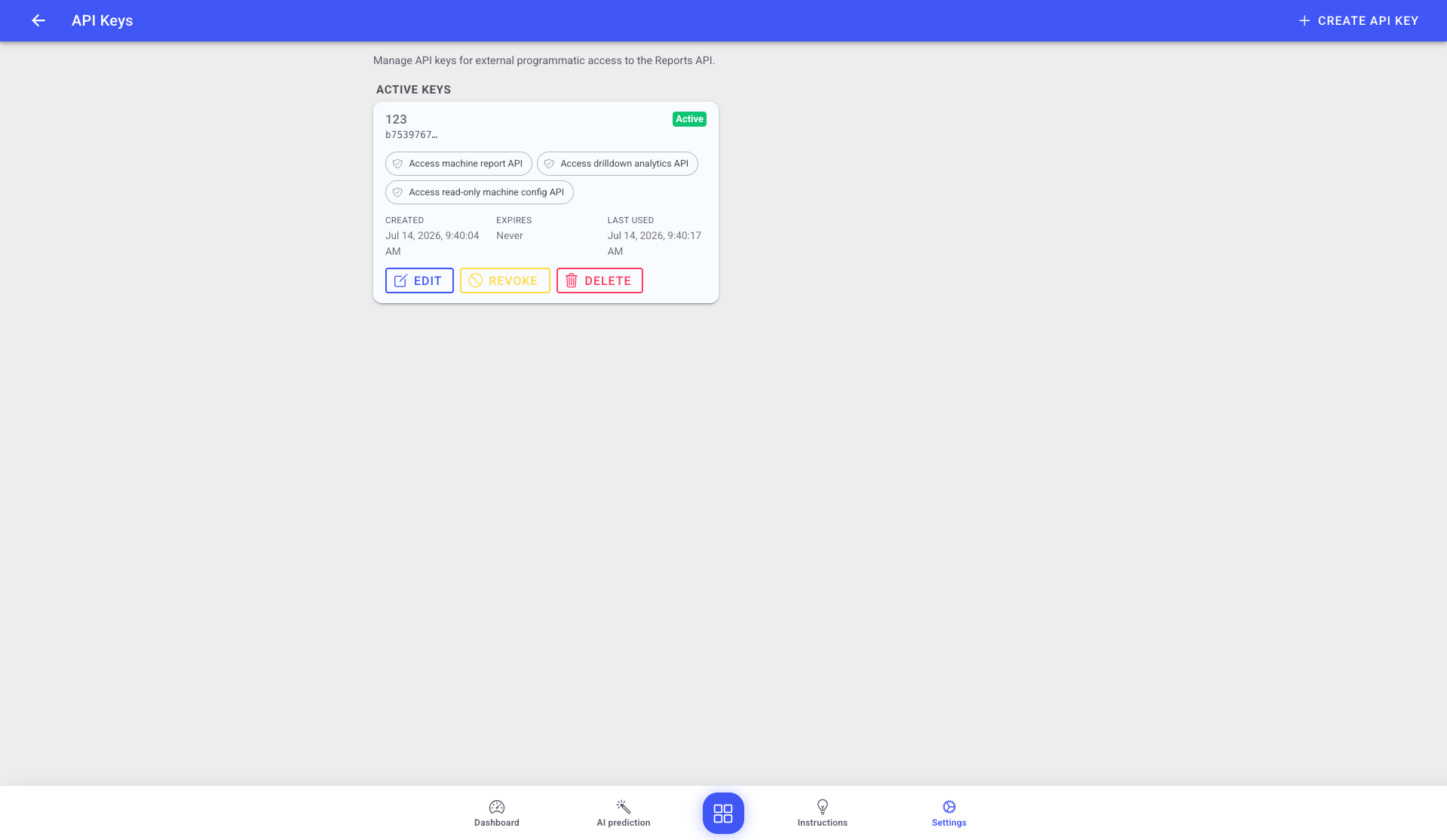

Each active key is shown as a card with its name, shortened key prefix, granted permissions, created / expires / last used dates, and the Edit / Revoke / Delete buttons. Revoked keys are kept in a separate list for reference (delete-only):

API Keys page showing an active key card with permission chips and Edit, Revoke, and Delete buttons

Using the Public API (Swagger UI)

Once you have a key, you can browse and try the endpoints in the interactive API documentation (Swagger UI).

  • Where: Open /public/v1/docs on your Edge installation's address (for example https://<your-edge-address>/public/v1/docs). It opens without a login — the API key is what authorizes the actual requests.
  • Choose an API: Use the Select a definition dropdown (top-right) to switch between the three documented APIs — Reports API, Drilldown API, and Config API. Each lists its available endpoints.
  • Authenticate: Select Authorize, then paste your key in the format prefix.secret into the x-api-key field and confirm. Requests you send from the page then include the key.
  • Try an endpoint: Expand an endpoint, select Try it out, fill in the request body, and select Execute to see the live response.

A key only works for the APIs whose permission it was granted — for example a key without the drilldown permission cannot call the Drilldown API endpoints.

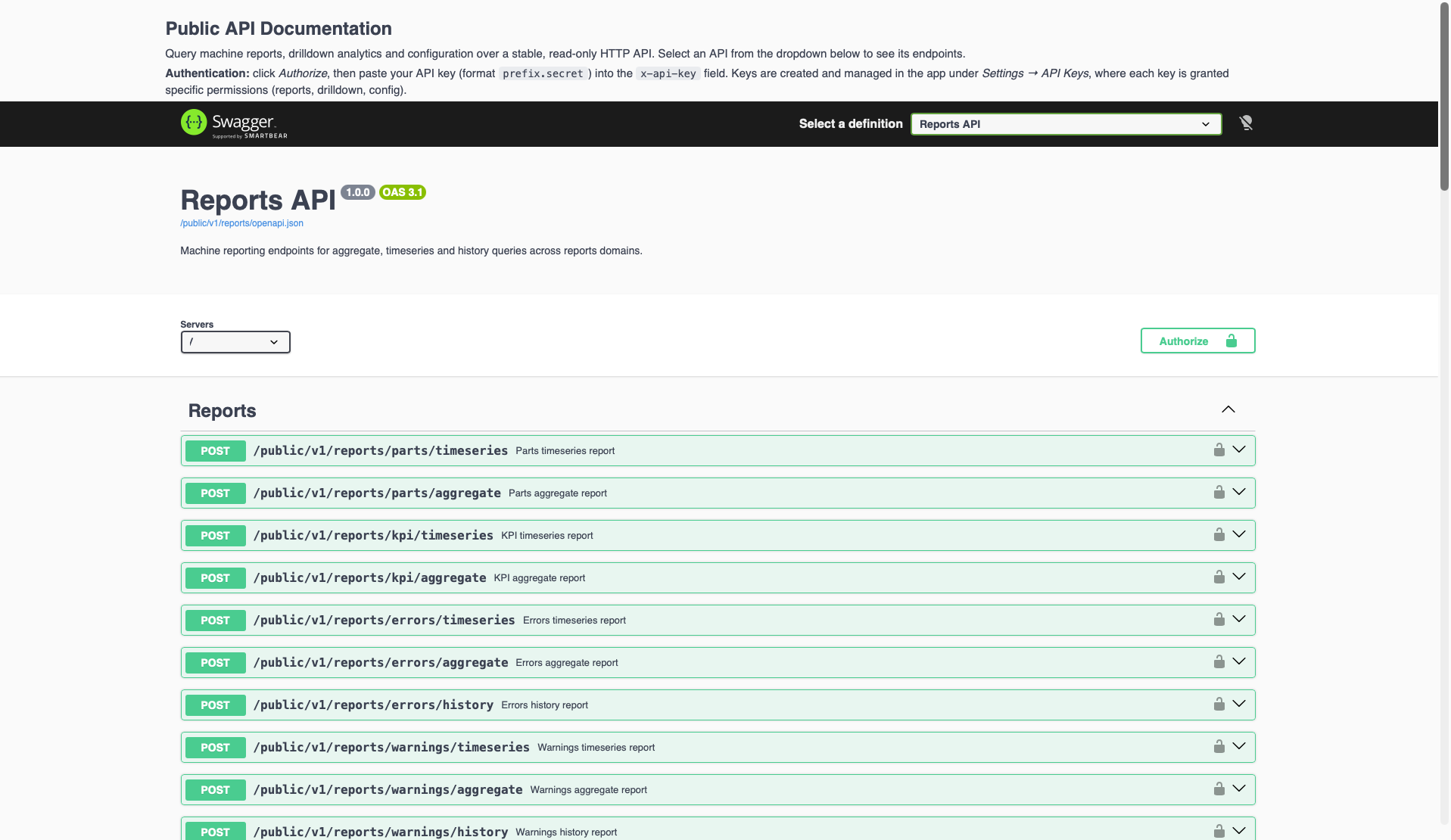

Public API Documentation page (Swagger UI) with the Reports API definition selected, the Authorize button, and the list of endpoints

Troubleshooting

  • Cannot see the full key value again -> Keys are shown only once at creation -> Revoke it and create a new one -> Update any external systems using the old key
  • An external integration stops working after an edit -> A permission needed by that integration was removed -> Re-add the required permission via Edit -> Confirm with whoever owns the integration which permissions it needs
  • A Public API request returns 401/403 -> The key is missing, malformed, or lacks the permission for that API -> Check the x-api-key value is prefix.secret and that the key has the matching permission -> Recreate the key with the required permission if needed
