Machine Status Timeline¶

Category: Machine Status · Widget ID: oee.machine-status-chart

What it shows¶

Shows the machine status over time on a day-by-day basis, so you can see when the machine was running, stopped, or in another state across the selected period.

Data and refresh¶

Data source: OEE / machine-status service.
Time range: Respects the selected time period (plotted across the window).
Machine filter: Respects the selected machine(s).
Widget locks: You can lock this widget to its own machine and/or time range (Machine lock / Time lock) so it ignores the dashboard filters. See Custom Dashboard.

Configuration¶

This widget has no additional settings; it follows the dashboard machine and time filters.

How to read it¶

Each row is a day; colored segments along the row show the machine state at that time. Use it to spot recurring downtime patterns (for example the same shift each day).

Interactions¶

Scroll to load additional days within the selected range.

Screenshot¶

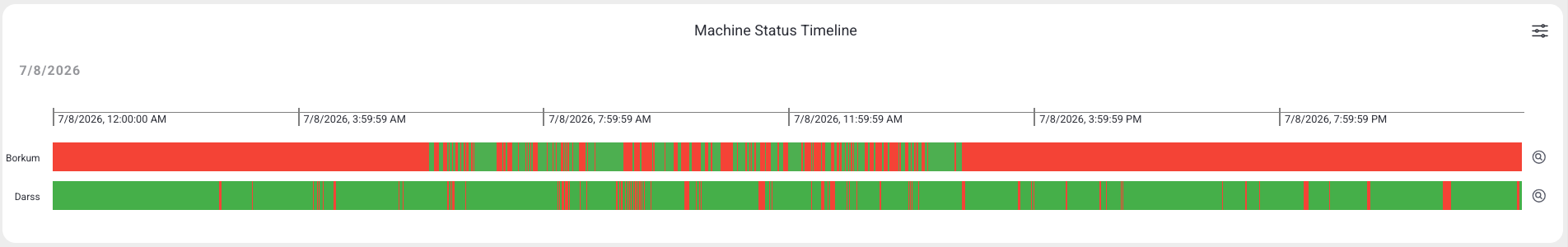

Machine Status Timeline widget with day-by-day status rows

Troubleshooting¶

Widget shows no data -> No events in the selected machine/period, or a filter is too narrow -> Widen the time range or change the machine, then refresh once -> If a machine that normally reports data stays empty, use Troubleshooting > Connectivity.
