Machine Status Over Time¶

Category: Machine Status · Widget ID: status.timeseries

What it shows¶

Shows machine states over time using the reporting time-series API, so you can follow how the state changed across the window.

Data and refresh¶

Data source: Reports API (time series).
Time range: Respects the selected time period (plotted across the window).
Machine filter: Respects the selected machine(s).
Widget locks: You can lock this widget to its own machine and/or time range (Machine lock / Time lock) so it ignores the dashboard filters. See Custom Dashboard.

Configuration¶

Open the widget's filter menu (slider icon), then select Configure to change:

Chart type: Stacked bar or Line
Breakdown: Status, Running state, or Planned downtime state
Bucket: time resolution
Value metric: Percent of bucket time, Duration (min), or Occurrences
Split by machine and Status filter
Show legend, Show totals, Show markers

How to read it¶

Time runs along the x-axis; state is encoded by color/series. Complements the Distribution widget, which sums the same data.

Interactions¶

Widget filter (top-right icon) — open the widget's own settings to change its display.

Screenshot¶

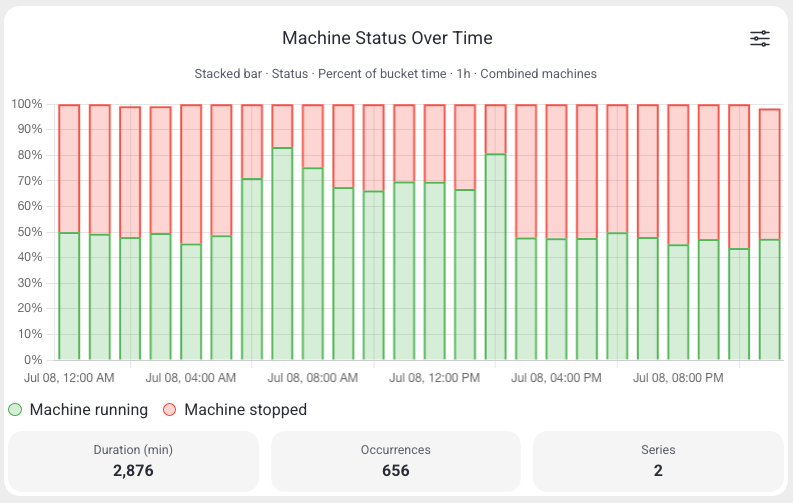

Machine Status Over Time widget

Troubleshooting¶

Widget shows no data -> No events in the selected machine/period, or a filter is too narrow -> Widen the time range or change the machine, then refresh once -> If a machine that normally reports data stays empty, use Troubleshooting > Connectivity.
